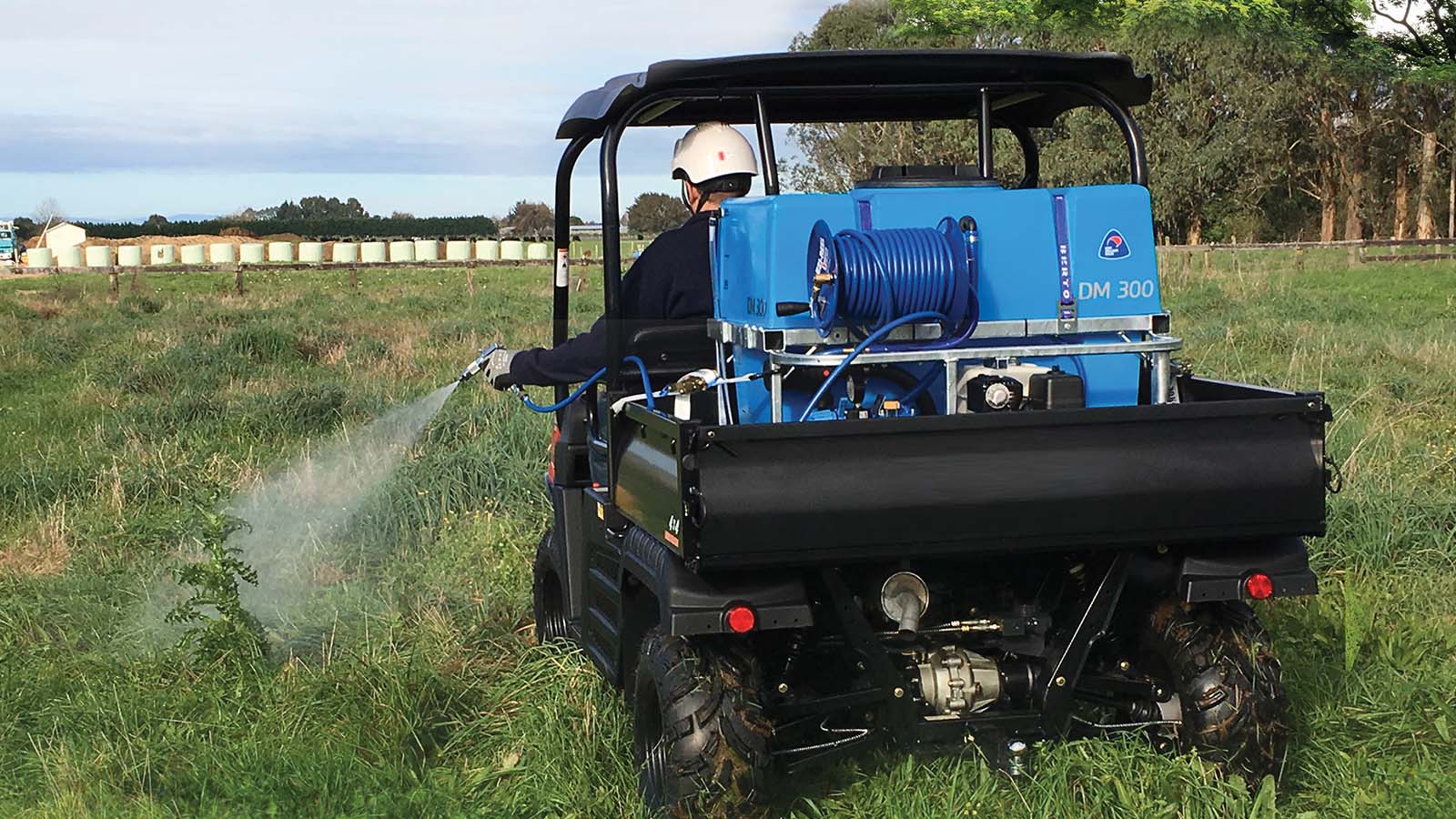

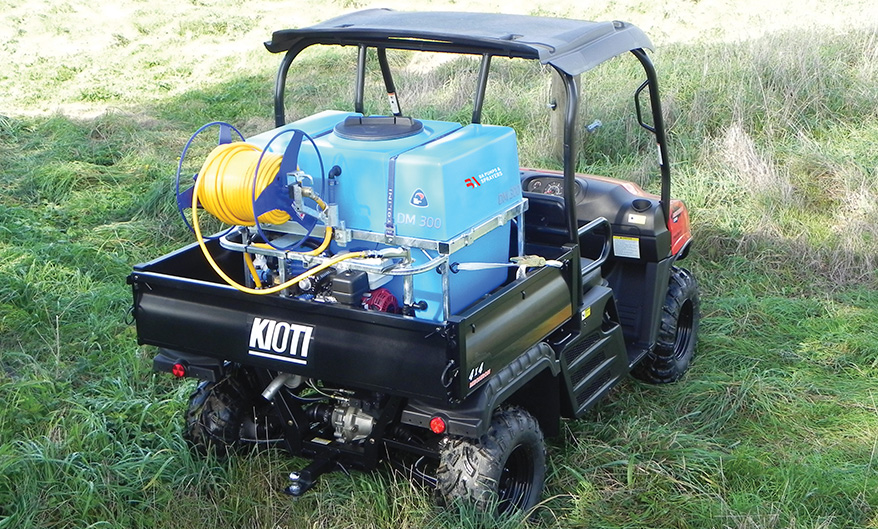

The DM Series is available in a range of models from 12 volts suitable for off-the-seat general spot spraying, to high-pressure Bertolini pumps better suited for spraying harder-to-access woody weeds.
The adaptive design also allows for the DM to be easily retro-fitted with a range of exclusive Smart-Fit Boom Sprays and BoomJet sprayers making it the ultimate multi-purpose sprayer.
200-300
Litre
Tank Sizes
Demand the Best
Standard Features:
- Low-profile baffled tanks for excellent weight distribution and stability.
- Fully draining tank sump to drain every last drop.
- Hot dipped galvanised wrap-around frame with integrated tie-down points for ultimate corrosion resistance.
- Smart-Fit accessories to allow booms and boomjets to be fitted with the tailgate closed.
- Optional Honda-driven Bertolini pump.
- Fitted with 3-way ball valve on the suction side of the pump allowing operator to select PUMP, OFF or DRAIN.
- Easy to read tank-level sight tube.
- 30m and 50m manual or 100m remote retractable hose reel options available.
*Always check your UTV manufacturer’s load weight before mounting a sprayer.
Features
1

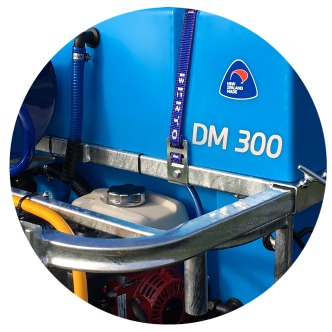

RHS hot dipped galvanised wrap around frame.
2

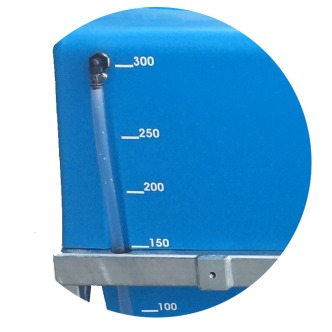

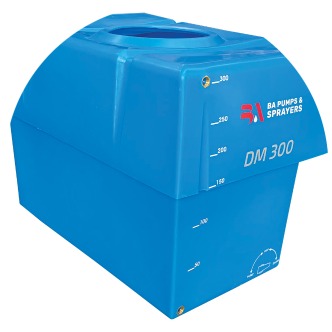

Moulded tank calibration strip, with sight gauge level indicator for clear visibility while operating.
3
Innovative 200L and 300L tank design with baffles to provide a low centre of gravity for added stability.
4

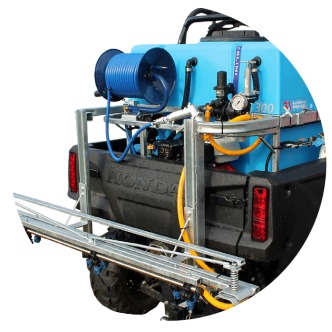

Modular Smart-Fit accessory designs for quick installation and easy use.
5

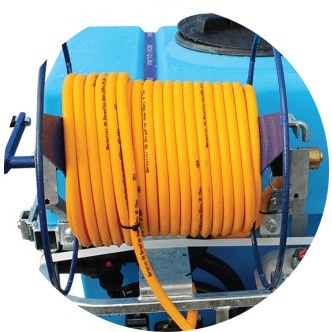

30M or 50M manual hose reel.
6

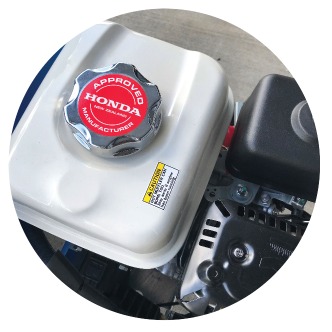

Genuine Honda engine powering Bertolini Diaphragm pump.
7

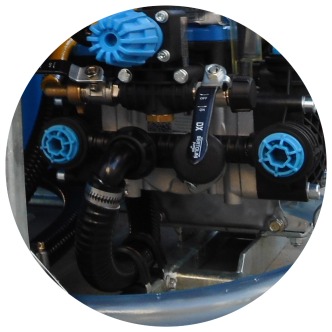

ShurFLO 12V or Bertolini POLY 30LPM / PA 40LPM pumps specifically suited for weed control and liquid fertiliser treatment.
8

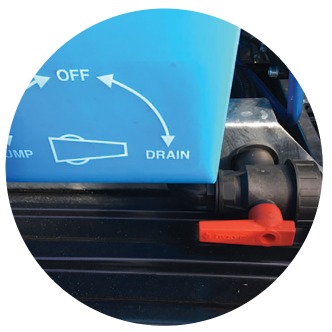

3-way drain tap controls pump, off and drain for easy operation.
9

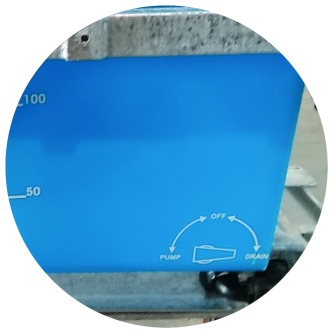

Sump for total evacuation.
10

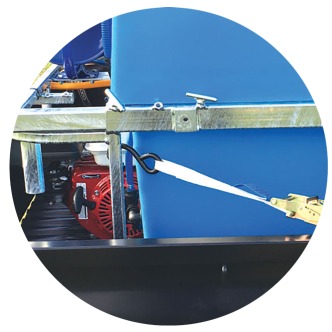

Integrated tie-down points.
1
2
3
4
5
6
7
8
9
10

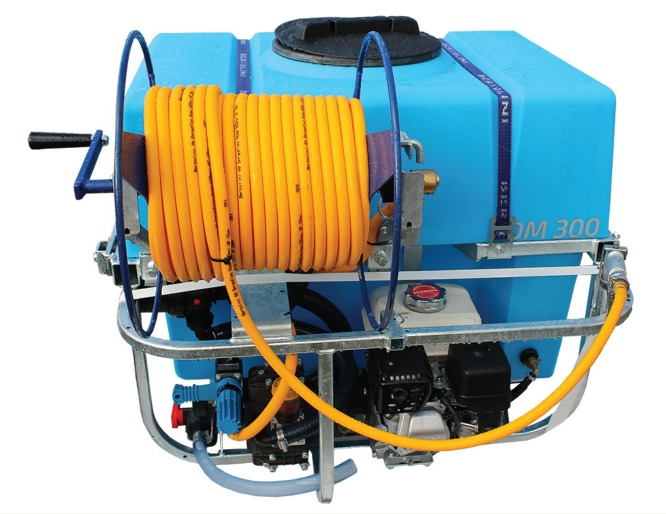

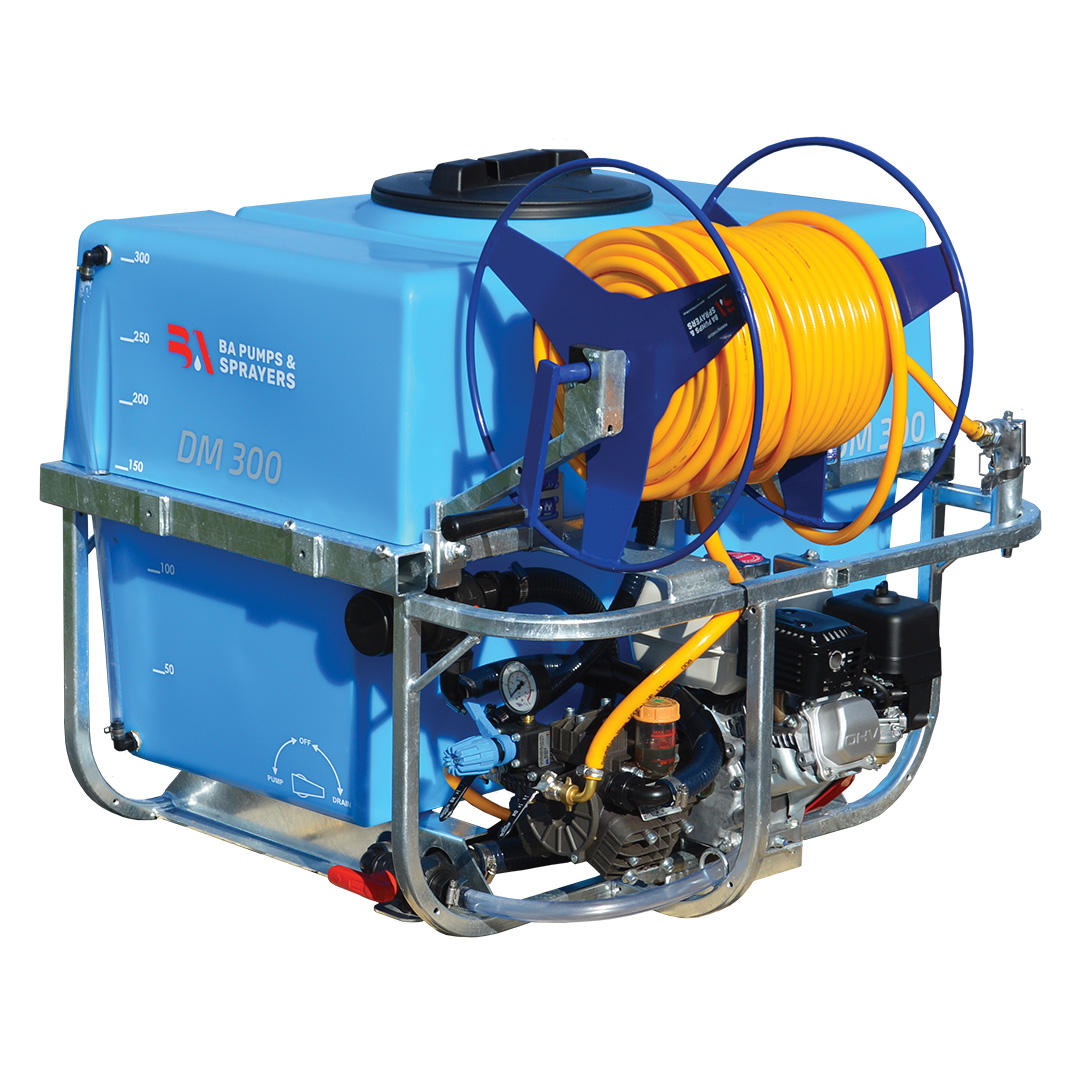

DM Series Product Range

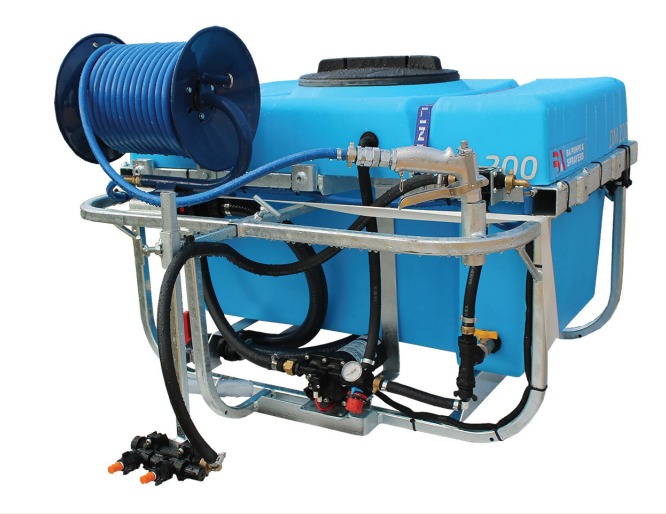

DM200/DM300-12V
The DM-12V is designed for lower-pressure spot spraying jobs, perfect for spraying around sheds, tracks, and fence lines.
Supplied standard with BA’s K Pistol and 30 metre EZI-Reel.
Add an optional Smart-Fit XP BoomJet or Smart-Fit Boom for thistle spraying.
Available in 200 and 300L tank sizes.

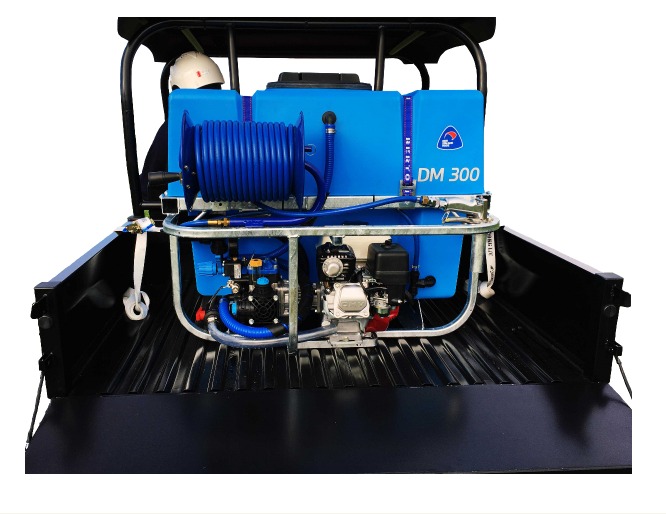

DM200/DM300-2030
The DM2030 Series is designed for lower-pressure maintenance spraying jobs, perfect for spraying around sheds, tracks, and fence lines. Supplied standard with BA’s K Pistol and 30 metre EZI-Reel. Add an optional Smart-Fit XP BoomJet or Smart-Fit Boom for thistle spraying. The POLY pump is ideal for liquid fertilisers.
Available in 200 and 300L tank sizes.
DM200/DM300-330
The DM330 Series is designed for larger farmers who need a high-pressure gun spraying unit for large brush weeds.
Supplied standard with BA’s K Pistol and 50 metre MAXI-Reel which can easily be upgraded to 100 metres.
Add an optional Smart-Fit XP BoomJet or Smart-Fit Boom for thistle spraying.
Available in 200 and 300L tank sizes.

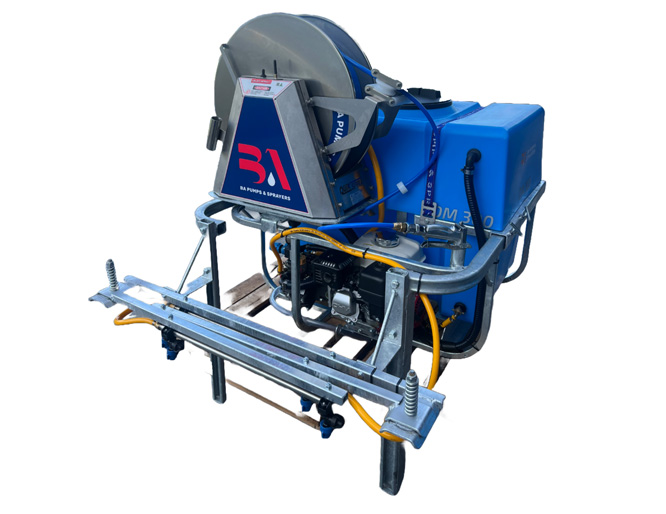

DM200/DM300-330-RR100
The DM330-RR100 is designed for farmers who want the convenience of a 12-volt retractable hose reel while spraying large brush weeds.
Available in 200 and 300L tank sizes.

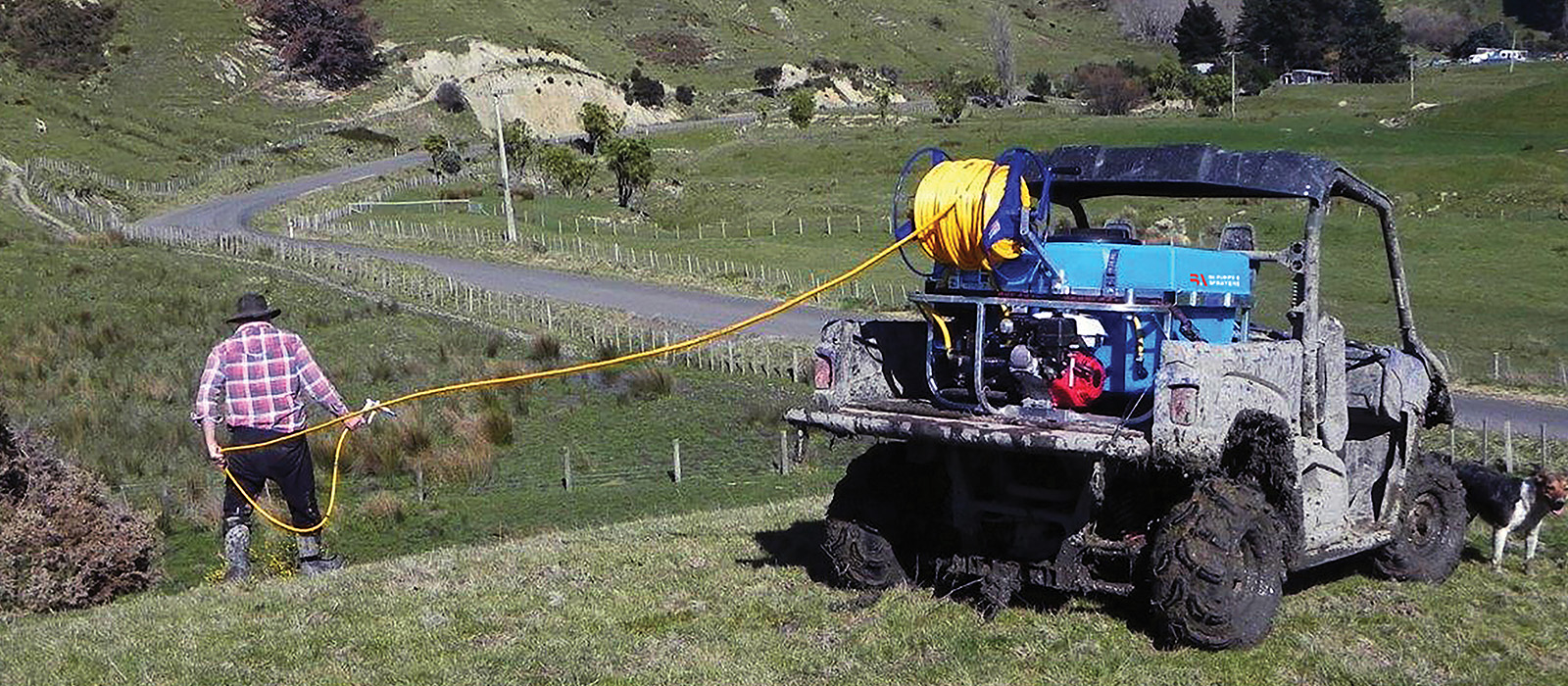

CLICK TO WATCH THE DM IN ACTION
Models
Filter by:
DM200-12V
200L, 12V, 30M Hose Reel
DM300-12V
300L, 12V, 30M Hose Reel
DM200-2030
200L, 30LPM Pump, 30M Hose Reel
DM300-2030
300L, 30LPM Pump, 30M Hose Reel
DM200-330
200L, Honda, 50M Hose Reel
DM300-330
300L, Honda, 50M Hose Reel
DM200-330-RR100
200L, 100M Retractable Hose Reel
DM300-330-RR100
300L, 100M Retractable Hose Reel
Model
Tank Size
Pump
Motor
Reel
Spray System
DM200-12V
200L
SHURflo 12V | 20LPM | 58PSI
12V
30M EZI-Reel
BA K Pistol
More
Compare
Enquire
DM300-12V
300L
SHURflo 12V | 20LPM | 58PSI
12V
30M EZI-Reel
BA K Pistol
More
Compare
Enquire
DM200-2030
200L
Bertolini POLY2030 | 30LPM | 280PSI
Honda GX160
30M EZI-Reel
BA K Pistol
More
Compare
Enquire
DM300-2030
300L
Bertolini POLY2030 | 30LPM | 280PSI
Honda GX160
30M EZI-Reel
BA K Pistol
More
Compare
Enquire
DM200-330
200L
Bertolini PA330 | 34LPM | 580PSI
Honda GX160 5.5HP
50M MAXI-Reel
BA K Pistol
More
Compare
Enquire
DM300-330
300L
Bertolini PA330 | 34LPM | 580PSI
Honda GX160 5.5HP
50M MAXI-Reel
BA K Pistol
More
Compare
Enquire
DM200-330-RR100
200L
Bertolini PA330 | 34LPM | 580PSI
Honda GX160
QUIKSPRAY 100M 12V remote retractable reel
BA K Pistol
More
Compare
Enquire
DM300-330-RR100
300L
Bertolini PA330 | 34LPM | 580PSI
Honda GX160
QUIKSPRAY 100M 12V remote retractable reel
BA K Pistol
More
Compare
Enquire
Model Specifications
Model Specifications
200L, 12V general-purpose deck mount sprayer. Supplied with 30m hose reel and gun.
Tank Size
200L
Pump
SHURflo 12V | 20LPM | 58PSI
Control
On/off power switch, pressure regulating valve
Dry Weight
70KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
12V
Reel
30M EZI-Reel
Spray System
BA K Pistol
Dimensions
895 x 1000 x 682
The DM-12V is designed for lower-pressure spot spraying jobs, perfect for spraying around sheds, tracks, and fence lines.
Tank Size
300L
Pump
SHURflo 12V | 20LPM | 58PSI
Control
On/off power switch, pressure regulating valve
Dry Weight
75KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
12V
Reel
30M EZI-Reel
Spray System
BA K Pistol
Dimensions
895 x 1000 x 842
200L deck mount sprayer with Honda engine for lower-pressure maintenance spraying jobs
Tank Size
200L
Pump
Bertolini POLY2030 | 30LPM | 280PSI
Control
Karin two tap pressure regulator
Dry Weight
91KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
Honda GX160
Reel
30M EZI-Reel
Spray System
BA K Pistol
Dimensions
895 x 1000 x 682
300L deck mount sprayer with Honda powered motor is designed for lower-pressure maintenance spraying jobs, perfect for spraying around sheds, tracks, and fence lines.
Tank Size
300L
Pump
Bertolini POLY2030 | 30LPM | 280PSI
Control
Karin two tap pressure regulator
Dry Weight
96KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
Honda GX160
Reel
30M EZI-Reel
Spray System
BA K Pistol
Dimensions
895 x 1000 x 842
The DM330 Series is designed for larger farmers who need a high-pressure gun spraying unit for large brush weeds.
Tank Size
200L
Pump
Bertolini PA330 | 34LPM | 580PSI
Control
Karin two tap pressure regulator
Dry Weight
103KG
Filter
Arag 32MM | 50 Mesh Filter
Motor
Honda GX160 5.5HP
Reel
50M MAXI-Reel
Spray System
BA K Pistol
Dimensions
1000 x 925 x 682
The DM330 Series is designed for larger farmers who need a high-pressure gun spraying unit for large brush weeds.
Tank Size
300L
Pump
Bertolini PA330 | 34LPM | 580PSI
Control
Karin two tap pressure regulator
Dry Weight
108KG
Filter
Arag 32MM | 50 Mesh Filter
Motor
Honda GX160 5.5HP
Reel
50M MAXI-Reel
Spray System
BA K Pistol
Dimensions
1000 x 925 x 682
This 200L deck mount sprayer is designed for farmers who want the convenience of a 12V retractable hose reel while spraying large brush weeds.
Tank Size
200L
Pump
Bertolini PA330 | 34LPM | 580PSI
Control
Karin two tap pressure regulator
Dry Weight
126KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
Honda GX160
Reel
QUIKSPRAY 100M 12V remote retractable reel
Spray System
BA K Pistol
Dimensions
1010 x 1000 x 1300
ThIS 300L deckmount sprayer is designed for farmers who want the convenience of a 12V retractable hose reel while spraying large brush weeds.
Tank Size
300L
Pump
Bertolini PA330 | 34LPM | 580PSI
Control
Karin two tap pressure regulator
Dry Weight
130KG
Filter
Arag 32mm | 50 Mesh Filter
Motor
Honda GX160
Reel
QUIKSPRAY 100M 12V remote retractable reel
Spray System
BA K Pistol
Dimensions
1010 x 1000 x 1300
Model Specifications
1
Try comparing to:
2
Try comparing to:
3
Try comparing to:
1
Items for comparison
[Reset]
Upgrades & Accessories

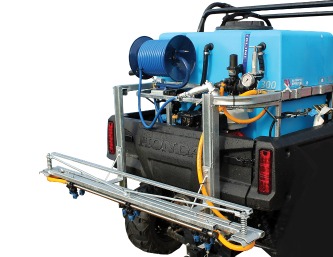

DM Smart-Fit Folding Spray Boom
DM Smart-Fit Folding Spray Boom
Available in 3, 4.5 or 6 metre boom lengths. Fitted with TeeJet AIXR nozzles.

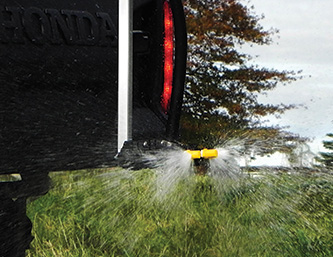

DM Smart-Fit XP BoomJet Boomless Nozzle Kit
DM Smart-Fit XP BoomJet Boomless Nozzle Kit
Sprays up to a 6m swath. Available in three nozzle sizes. Includes angle bracket for easy mounting.

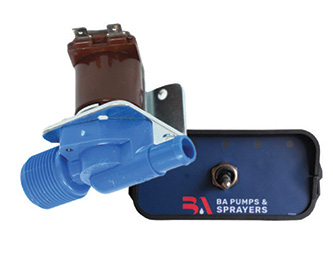

Smart-Fit In-Cab Electric On/Off Kit
Smart-Fit In-Cab Electric On/Off Kit
Turn your boom on and off from the comfort of your cab.
