2200-3300L Vine Sprayer

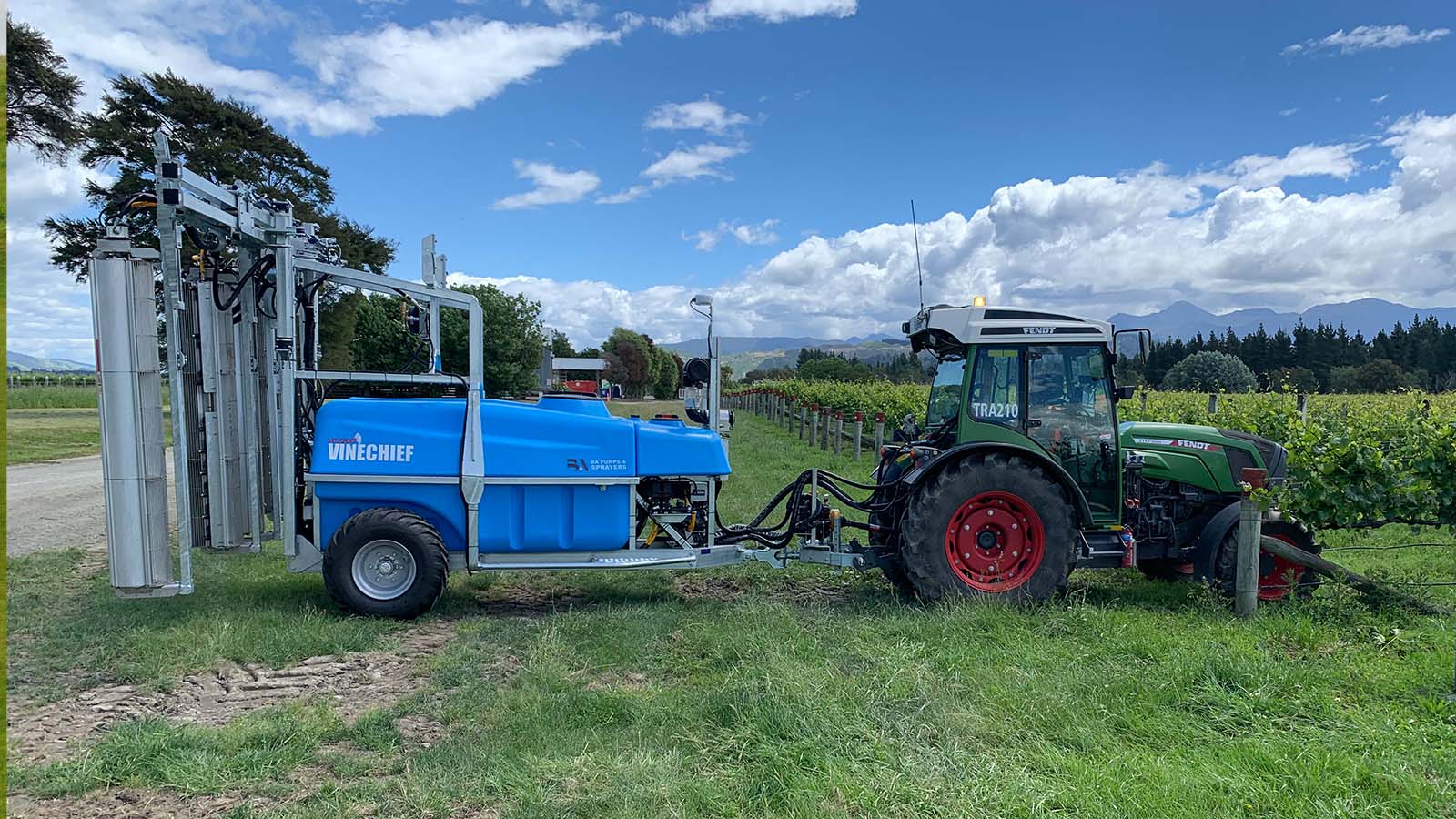

The BA Vine Sprayer is a Trailed Vineyard Sprayer perfect for all vineyards and available for single, two, or three-row spraying.
The spray pattern from the tangential fans can be quickly adjusted to precisely target the canopy according to the growth stage and season.
2200 - 3300
L
Tank Sizes
Tangential
Fan Technology
Enhanced crop protection
Standard Features:
- 2200 and 3300L Polyethylene tanks.
- Galvanised framework.
- Available as 2 and 3-row models.
- Magnetic spring loaded drop arm breakaways.
- PTO driven Bertolini Poly Pump.
- ARAG Bravo 350 Auto Rate control C/W with electric/hydraulic switches.
- Electric-hydraulic folding arms and fan on/off.
- Tangential fan heads deliver precise air curtain.
- Oil cooler.
- Double roll-over nozzle bodies.
- Ceramic nozzles.
- Supermix agitation.
- Flush tank.
Features
1

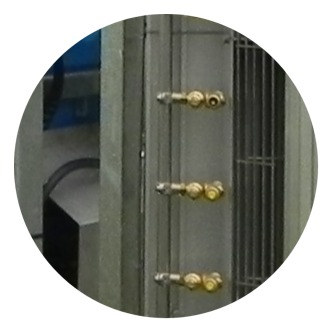

9 Double Roll-Over nozzle bodies.
2

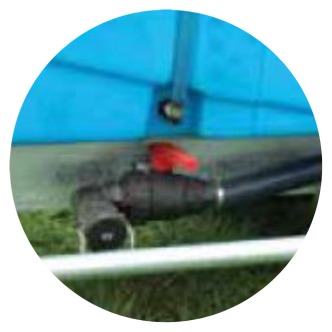

Easy access tank drain and bottom fill.
3

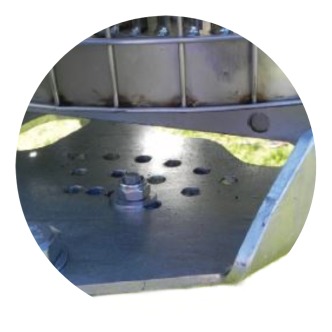

Laser-cut alignment holes ensures the tangential heads can be locked at the correct spraying angle.
4

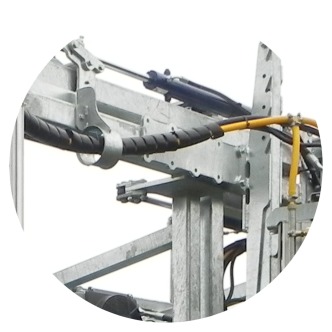

Double beam for improved mast strength. Rollers ensure heads are easily adjustable for different row widths. Optional hydraulic row width adjustment kit is now available.
5

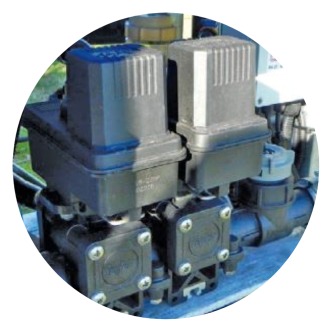

TeeJet® section valves and flow meter.
6

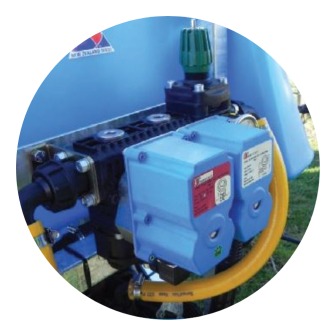

Bertolini main on/off and electric pressure regulator valve.
7

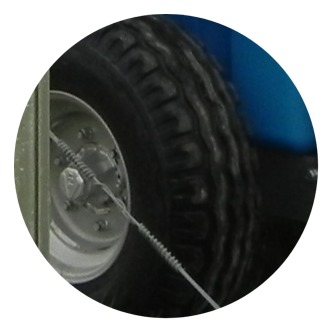

Wider profile tyres ensure less ground compaction and improved stability.
8

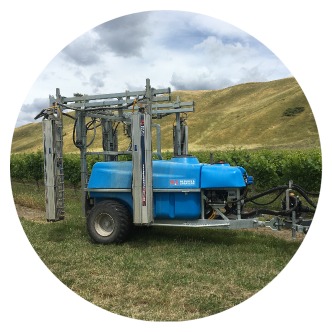

In travel mode the electric over hydraulic system allows the arms to be folded independently and tangential fans to be turned on or off.
9

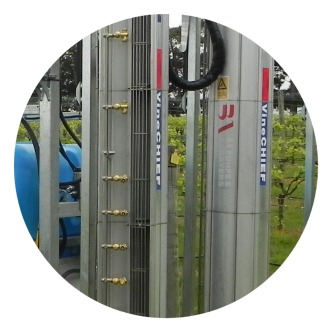

4 bearing tangential fans.
10

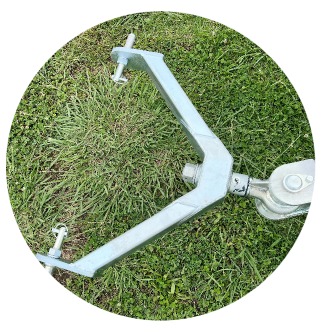

Optional 3PTL mounted swivel drawbar.
11

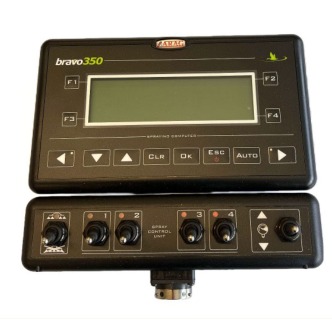

ARAG Bravo 350 Auto Rate Control C/W with electric or hydraulic switches
1
2
3
4
5
6
7
8
9
10
11
Models
Filter by:
BAVS2200-4T-1800
2200L, 2 Row Tangential Fan
BAVS2200-6T-1800
2200L, 3 Row Tangential Fan
BAVC3000-4T-1800
3300L, 2 Row Tangential Fan
BAVC3000-6T-1800
3300L, 3 Row Tangential Fan
Model
Tank Size
Tank Size
Tank Size
BAVS2200-4T-1800
2200L
2200L
2200L
More
Compare
Enquire
BAVS2200-6T-1800
2200L
2200L
2200L
More
Compare
Enquire
BAVC3000-4T-1800
3300L
3300L
3300L
More
Compare
Enquire
BAVC3000-6T-1800
-
-
-
More
Compare
Enquire
Model Specifications
Model Specifications
2200L 2 row tangential fan vine sprayer.
Tank Size
2200L
Pump
Bertolini 2180 | 170LPM | 218PSI
Control
ARAG Bravo 350 Autorate controller
Fan
4 Tangential Fans/2 Rows
Spray System
4 x 1.8m tangential fans with 9 nozzles
Drive
PTO
Rows
4 head | 2 row
Tank Size
2200L
Pump
Bertolini 2180 | 170LPM | 218PSI
Control
ARAG Bravo 350 Autorate Controller
Fan
6 Tangential Fans/3 Rows
Spray System
4 x 1.8m tangential fans with 9 nozzles
Drive
PTO
Rows
6 head | 2 row
3300L 2 row tangential fan vine sprayer.
Tank Size
3300L
Pump
Bertolini 2180 | 170LPM | 218PSI
Control
ARAG Bravo 350 Autorate controller
Fan
4 Tangential Fans/2 Rows
Spray System
4 x 1.8m tangential fans with 9 nozzles
Drive
PTO
Rows
4 head | 2 row
3300L 3 row tangential fan vine sprayer.
Tank Size
-
Pump
-
Control
Auto Rate Control
Fan
6 Tangential Fans/3 Rows
Spray System
-
Drive
-
Rows
-
Model Specifications
1
Try comparing to:
2
Try comparing to:
3
Try comparing to:
1
Items for comparison
[Reset]
What our customers say
“I first worked with BA 18 years ago when I bought a Bertolini trailed over row vine sprayer. Three years later I bought my second one and they are still working today!”
Paul Brown, Paul Brown Contracting
BA Trailed Vine Sprayer
Upgrades & Accessories
Tandem Oscillating Axle
Tandem Oscillating Axle
Provides a smoother ride over uneven ground.
2 Row Hydraulic Row Width Kit
2 Row Hydraulic Row Width Kit
BAVCHRW-4T
3 Row Hydraulic Row Width Kit
3 Row Hydraulic Row Width Kit
BAVCHRW-6T
Hydraulic Power Pack
Hydraulic Power Pack
Suitable for 2 and 3 row machines.
#BAVCHPP

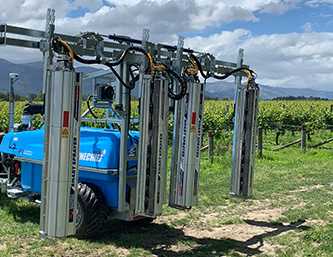

Smart Apply LiDAR Based Control System
Smart Apply LiDAR Based Control System
USDA approved density-based sprayer technology for air assisted sprayers.
