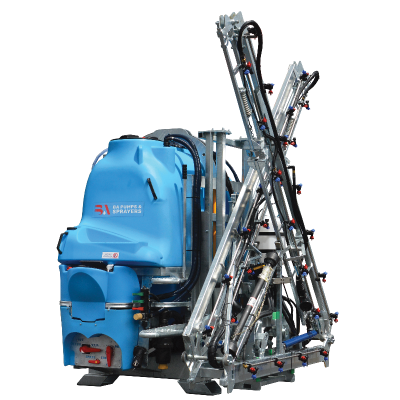

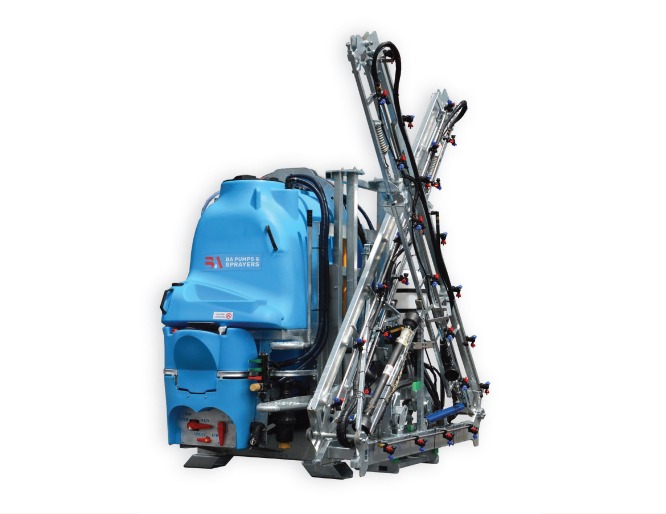

Linkage Sprayers

1600-1900L LK Series

6 MODELS

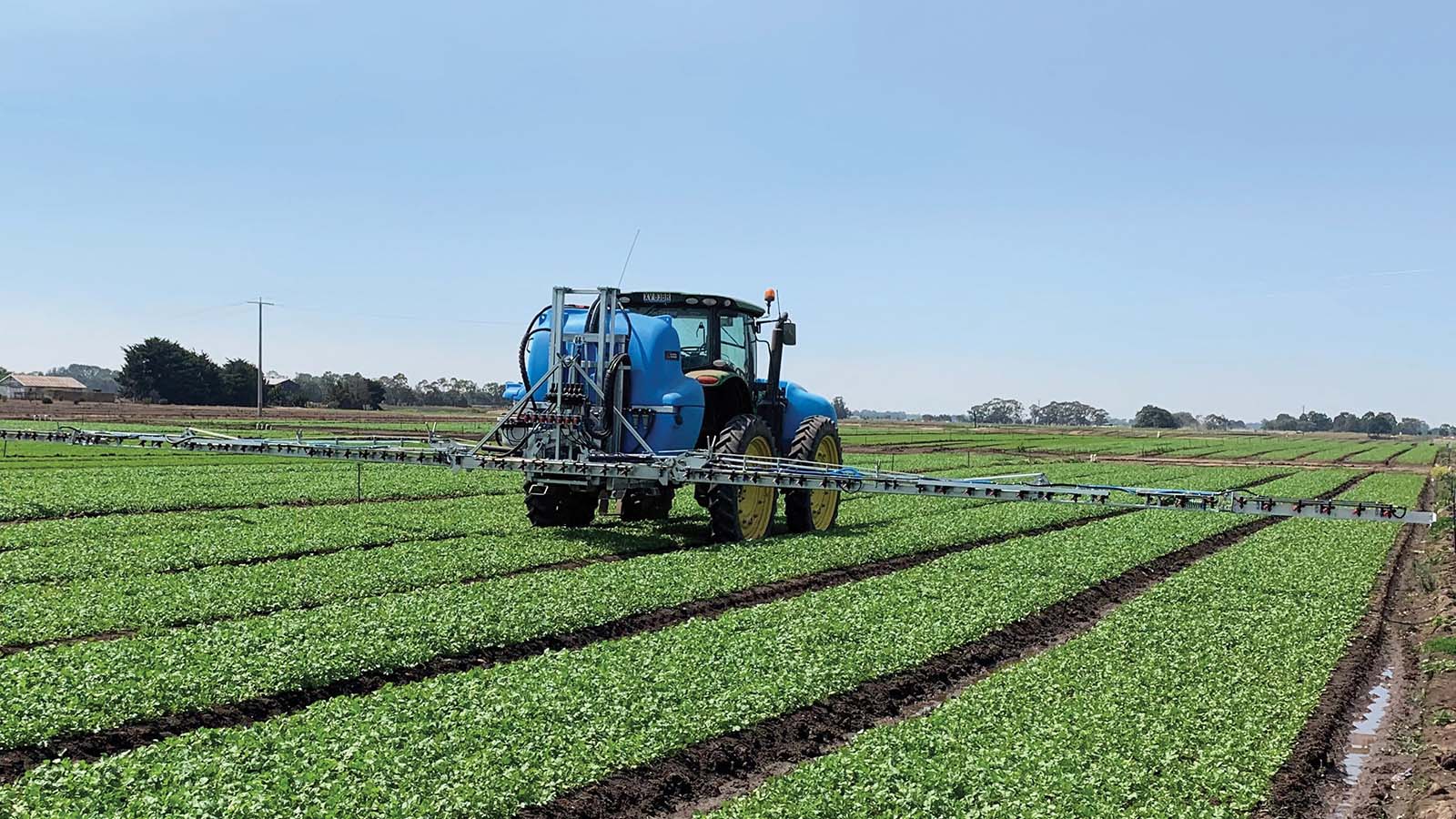

Bertolini 170 l.p.m. or 210 l.p.m. POLY pump. Heavy duty galvanised frame with access step/platform. 1600 or 1900 litre tank. 10 litre handwash tank. 150 litre flush tank. In cab 5 section controller. Hydraulic boom lift mast. 12-18 metre X-2 hydraulic fold boom. Stainless steel spray lines. TeeJet AIXR low drift nozzles. Airbag boom suspension. Chemical Induction Hopper.

The feature-packed LK Series is ideal for vegetable growers or small crops, turf growers, and larger pastoralists no matter the terrain.

The flexible design can be upgraded to suit the highest level of precision farming.

12-18

Boom Length

170 or 210

LPM

Bertolini POLY Pump

ISOBUS

Compatible

6 MODELS

LK1600-2180-12X2

1600L, 12M Boom

LK1600-2180-15X2

1600L, 15M Boom

LK1600-2180-18X2

1600L, 18M Boom

LK1900-2180-12X2

1900L, 12M Boom

LK1900-2180-15X2

1900L, 15M Boom

LK1900-2180-18X2

1900L, 18M Hydraulic Boom

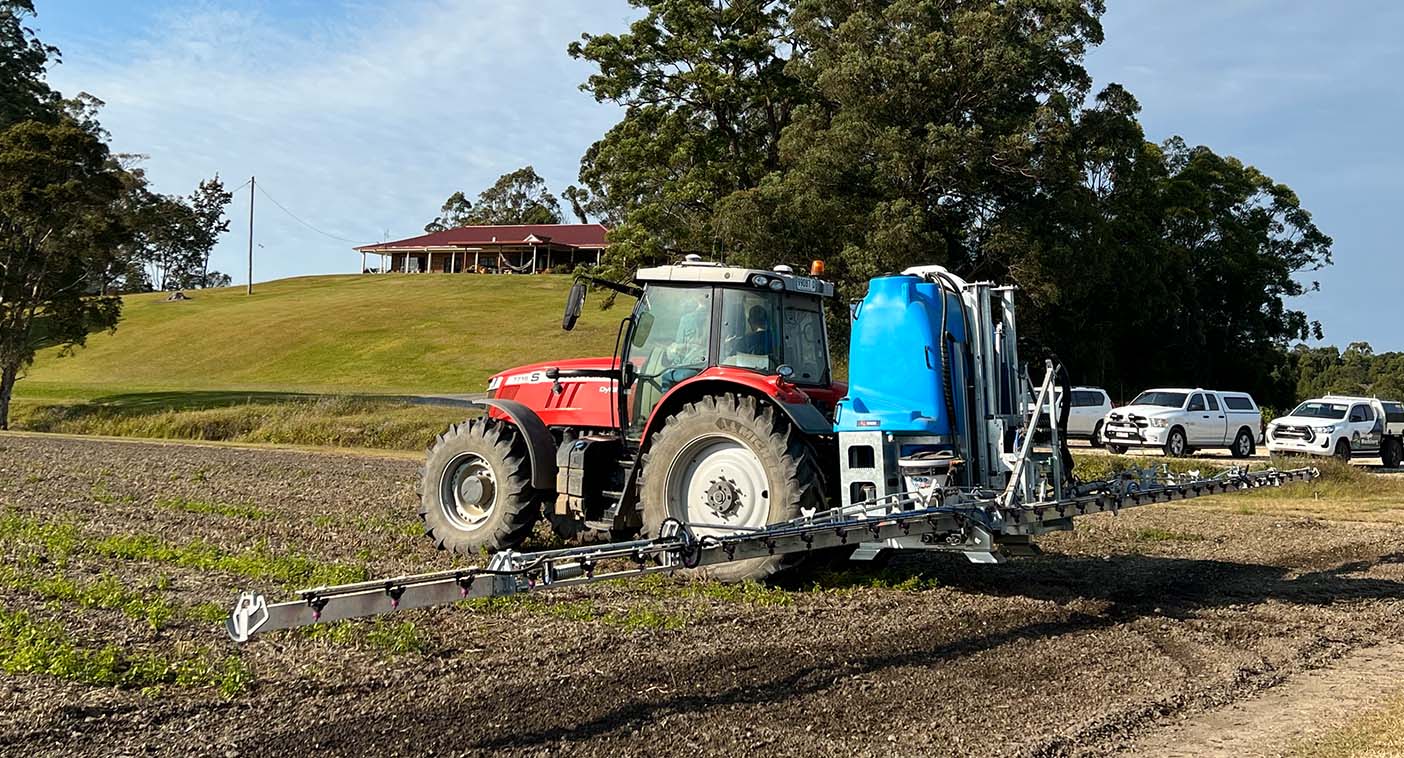

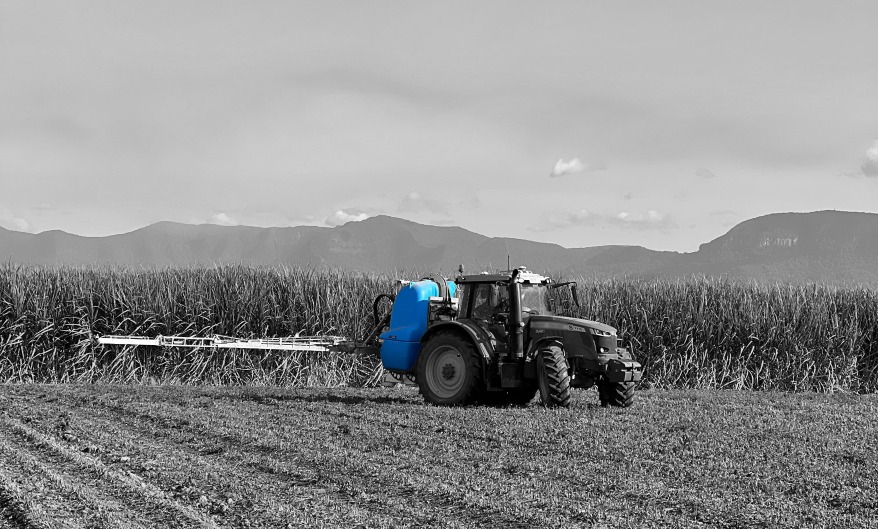

LK linkage sprayer on a tractor spraying in NSW

The King of Linkage Sprayers

Standard Features include:

PTO-driven Bertolini poly pump with 170LPM delivery.
Heavy-duty galvanised CAT2 3PTL – strongest in its class.
Easy-to-read, tank-level, sight tube.
Chemical induction hopper with container rinse function.
Easy access controls at a safe working height.
BA control station for spray/flush tank selection or chemical induction and tank drain.
4 Stage Filtration for reduced nozzle blockages and extended component life. Fitted with a large 50mesh suction filter, dual 80/100 mesh TeeJet pressure filters, and individual nozzle strainers.
Smart Flush 105 litre flush tank for easy decontamination.
Forklift pockets.
Storage points for hydraulic hoses.
ISOBUS compatible.
Select your hydraulic boom option, lift, or suspension add-on, and any control upgrades.

Features

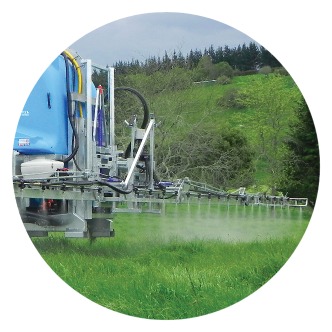

The Super X-2 fully-hydraulic spray booms are designed for demanding and tough terrain. A deep centre section and self-levelling geometry provides added strength and smooth operation in the field. Inner section pivots utilise bearings for longevity alongside outer section auto-reloading breakaways that breakaway forward and aft. Super X-2 booms have full nozzle protection as part of the design, not an afterthought. Available in 12, 15 and 18m boom lengths.

Bertolini POLY2180 pump specifically suited for weed control and liquid fertiliser treatment.

Large capacity main suction filter. Camlock capped main drain, bottom entry fill point.

BA control station for spray/flush tank selection or chemical induction tank drain.

Rota-Mix 30, chemical induction hopper with container rinse function. Easy access controls at a safe working height.

100 x 75 and 75 x 75 RHS CAT2 frame, HD double 3PTL plates, strongest in its class.

Smart Flush 150ltr on board flush tank.

Dual spray boom pressure filters, 50 and 100 mesh to eliminate individual nozzle strainers and blocked nozzles.

Clear tank gauge for easy operator viewing from tractor cab.

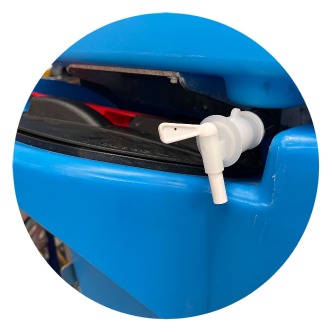

Integrated 10L hand wash tank for user safety.

Models

LK1600-2180-12X2

1600L, 12M Boom

LK1600-2180-15X2

1600L, 15M Boom

LK1600-2180-18X2

1600L, 18M Boom

LK1900-2180-12X2

1900L, 12M Boom

LK1900-2180-15X2

1900L, 15M Boom

LK1900-2180-18X2

1900L, 18M Hydraulic Boom

Model

Tank Size

Boom

Pump

Control

Chemical Induction

LK1600-2180-12X2

1600L

12m

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LK1600-2180-15X2

1600L

15m

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LK1600-2180-18X2

1600L

18m

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LK1900-2180-12X2

1900L

12m

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LK1900-2180-15X2

1900L

15m

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LK1900-2180-18X2

1900L

18m

Bertolini POLY2180 | 170LPM | 218PSI

5 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

Items for comparison

[Reset]

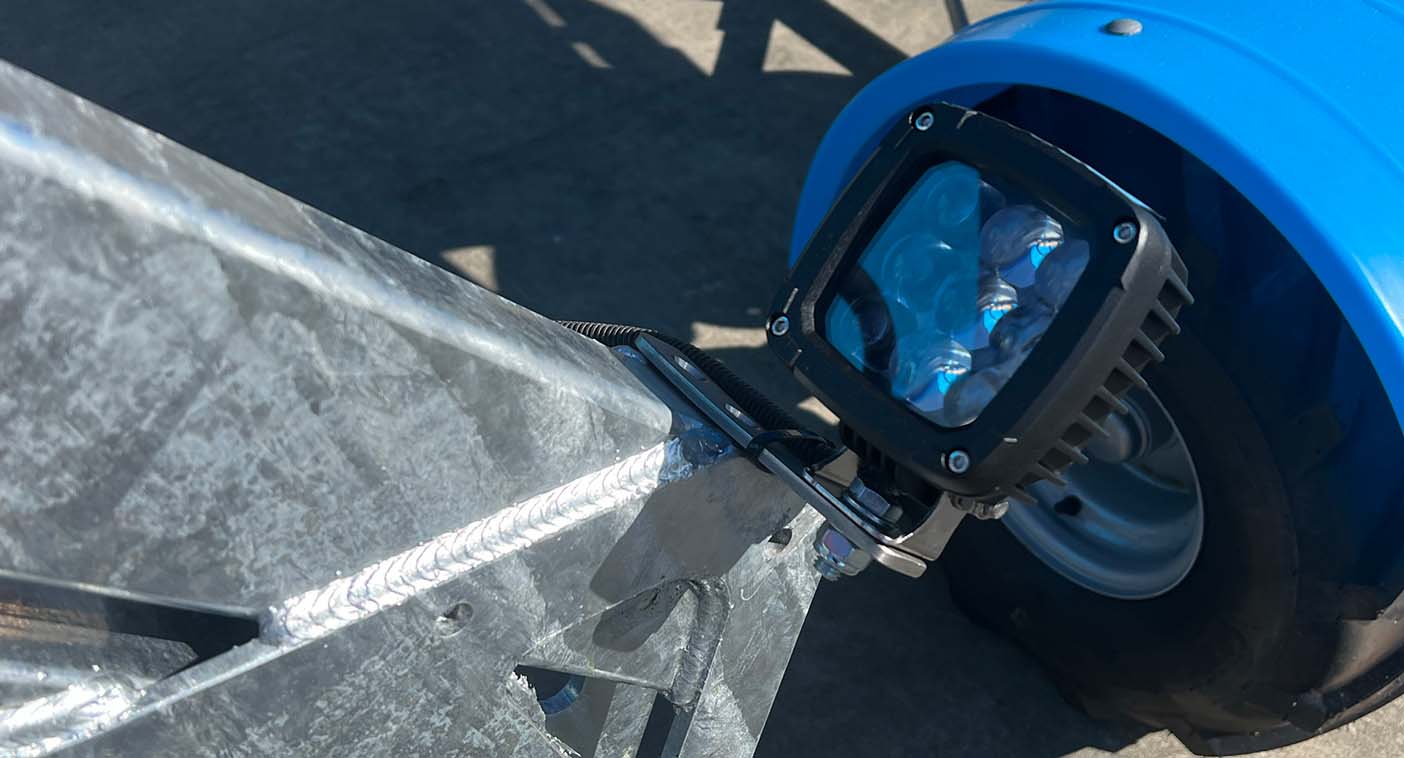

Add a blue light so you can spray at night when it's cool and calm.

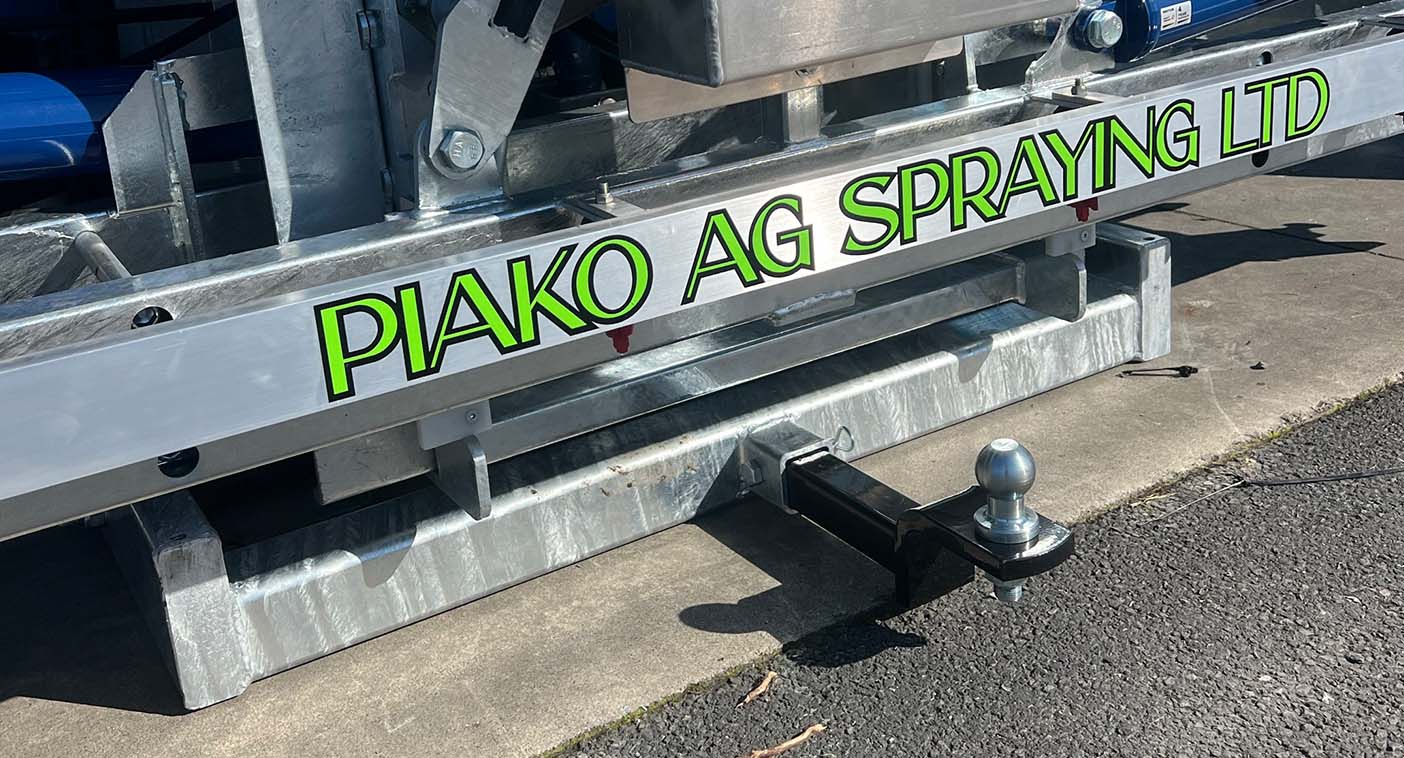

Talk to us about adding a tow bar frame to your sprayer.

1 / 5

Upgrades & Accessories

GPS Units

Work faster and easier with our range of TeeJet Matrix and Hexagon Ti Series GPS units.

TeeJet AutoRate Control

The TeeJet AutoRate compensates for speed variations to maintain a constant application rate.

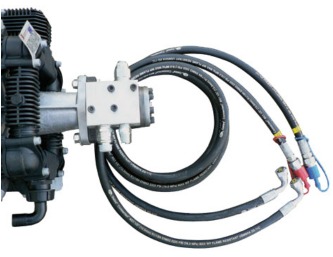

Hydraulic Pump Drive

Necessary for all hydraulic drives.

POLY2180 Pump

High flow 170LPM pump for large booms and water rates.

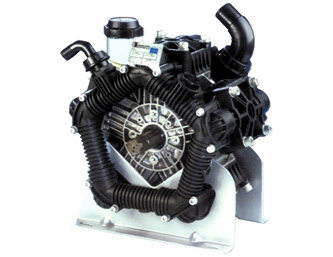

POLY2210 Pump

High flow 210LPM pump for large booms and water rates.

Boom Lift Mast

Suits booms up to 18 metres, supplied with a hydraulic ram, hose, and coupler.

Hydraulic Boom Lift With Integrated Accumulator Suspension

Runs smoothly on nylon rollers with ‘boom yaw' compensation built into the uprights.

Airbag Boom Suspension

Airbag boom suspension offers increased boom stability and extended boom life.

Bertolini Section Valves

Upgrade to increase boom section to 5, 7 or 9.

ISOBUS Module

A multi-platform autorate spray controller designed to interface directly with existing Isobus plug.

Diaphram Pump Hyraulic Drive

Diaphram Pump Hyraulic Drive

Hydraulic drive motor with a constant speed valve which maintains the motor speed of 540 RPM.

TeeJet XP Boomjet Fenceline Nozzle

Includes solenoid and in-cab switch to easily spray fence lines with up to 3m coverage.

X2 Winglift

Allows operator to lift entire left or right boom arms. Also has the option to tip fold.

What our customers say

BA gear is awesome. It’s simple to use, very well built and if you have a problem the area reps are very helpful with sorting them out over the phone.

Robert Rankin, Wolland Contracting LTD

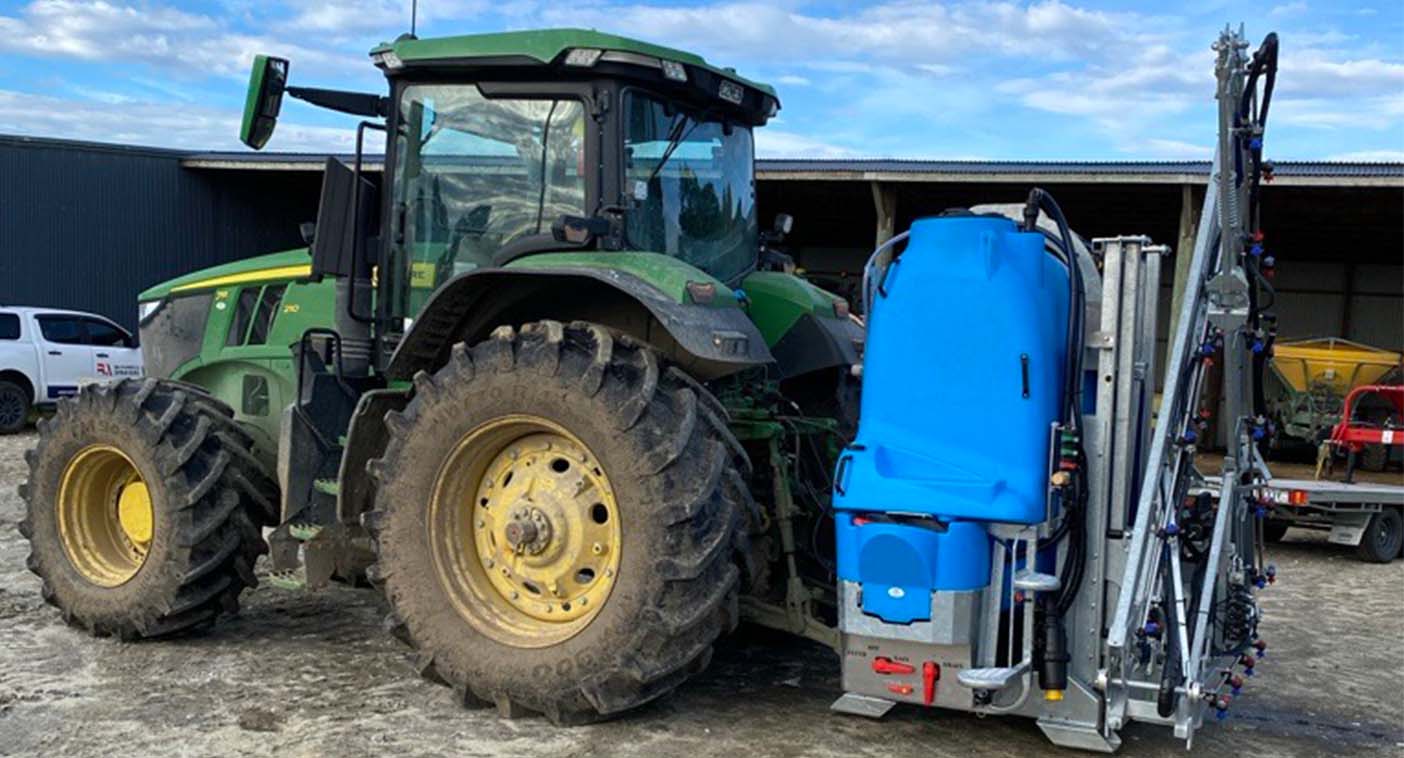

LK1600 and Front Mount Tank
